مكان المنشأ:
قوانغتشو
اسم العلامة التجارية:
PassionCO
رقم الموديل:
SAE100R6

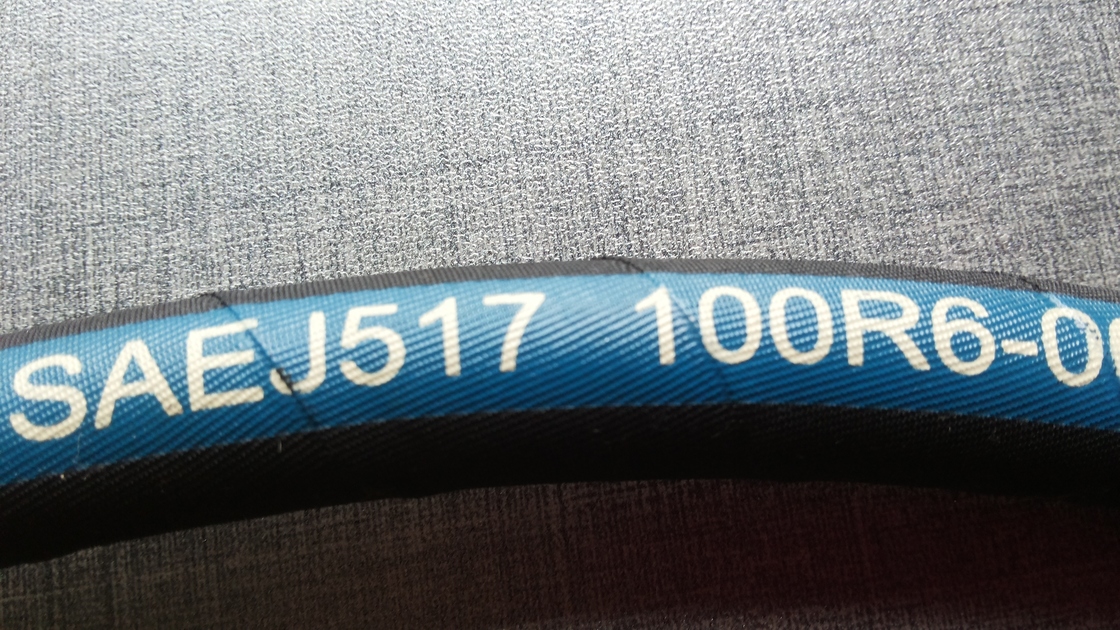

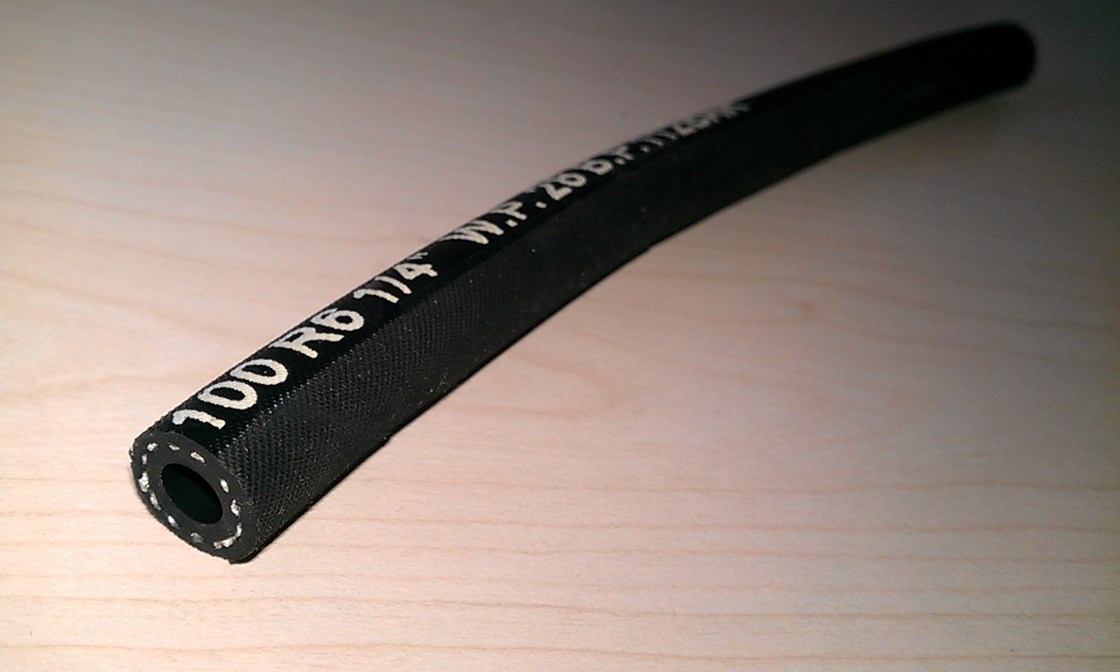

Size Range: 1/4" ~ 3/4" | One Textile Braid Reinforced | Smooth or Wrapped Surface
Engineered for reliability and ease of installation, the SAE 100R6 Flexible Hydraulic Hose offers superior performance in low-pressure oil and fluid circuits. Its high-grade synthetic rubber composition resists swelling, cracking, and hardening under continuous oil exposure, while its textile reinforcement provides excellent bend radius and vibration resistance.
This hose is particularly suited for use in return lines, lubrication systems, and diesel fuel circuits, ensuring stable flow and safety under demanding conditions.
Excellent Fluid Compatibility: Inner tube compatible with petroleum-based and synthetic hydraulic oils.
Enhanced Durability: Outer cover resists oil, heat, UV, and ozone damage for extended service life.
Compact & Lightweight: Easy routing and handling during equipment installation or maintenance.
Flexible Choice: Available with smooth or cloth-wrapped outer cover finish.
Temperature Range: Reliable from -40°C to +100°C, maintaining elasticity in both hot and cold climates.
Conforms to SAE 100R6 Standard: Ensuring consistent quality and interchangeability with global equipment brands.
Hydraulic return and drain lines
Diesel and lubrication oil circuits
Industrial fluid and coolant systems
Light machinery and construction equipment
General-purpose low-pressure fluid transfer
| Model | Inner Diameter (mm) | Outer Diameter (mm) | Working Pressure (MPa) | Burst Pressure (MPa) | Min. Bend Radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| PR6-04 | 6.5 | 12.6 | 2.8 | 11.2 | 65 | 0.13 |
| PR6-05 | 8.0 | 15.0 | 2.8 | 11.2 | 75 | 0.15 |
| PR6-06 | 9.8 | 16.0 | 2.8 | 11.2 | 75 | 0.19 |
| PR6-08 | 12.8 | 21.0 | 2.8 | 11.2 | 100 | 0.23 |
| PR6-10 | 16.0 | 24.0 | 2.4 | 9.6 | 125 | 0.33 |
| PR6-12 | 19.0 | 29.5 | 2.1 | 8.4 | 150 | 0.47 |
| Layer | Description | Function |
|---|---|---|
| Inner Tube | Oil-resistant synthetic rubber | Maintains integrity under petroleum and lubricants |
| Reinforcement | High-strength textile braid | Provides pressure support and flexibility |
| Outer Cover | Synthetic rubber (oil & weather resistant) | Protects against aging, abrasion, and sunlight |
Compact design for tight installation spaces
Proven resistance to hydraulic oils and lubricants
Long service life under continuous use
Flexible temperature and cover options (smooth / wrapped)

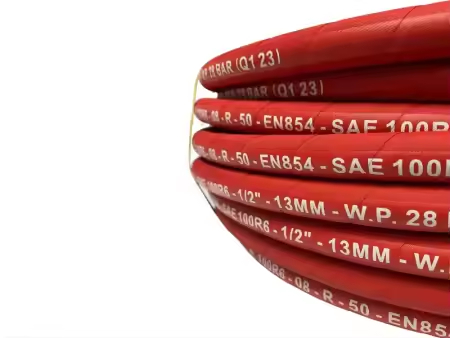

Available in coils up to 100 meters
The SAE 100R6 Flexible Hose combines durability, flexibility, and chemical resistance, making it the perfect choice for low-pressure hydraulic systems and return lines.
Custom OEM branding, logo printing, and color customization available upon request.

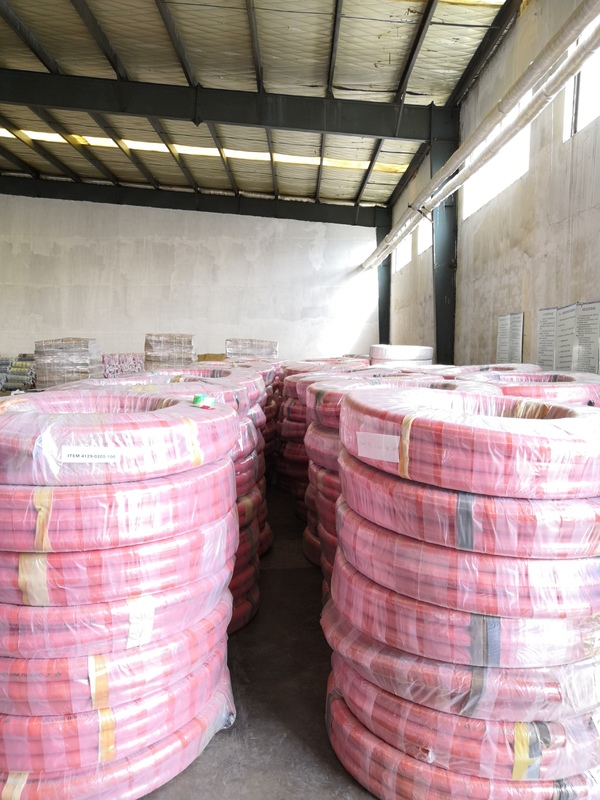

Ready for export with reinforced pallet packing and inspection reports.
أرسل استفسارك إلينا مباشرة
